Synthesis Opportunistic Domain Engineering
PRODUCT DESCRIPTION
PROCESS DESCRIPTION
INTERACTIONS WITH OTHER ACTIVITIES
Domain Verification is an activity of Domain Engineering for ensuring the
correctness, consistency, and completeness of domain engineering work
products. Both formal and informal techniques may be applied to the domain
engineering work products to verify these properties. Domain Verification is
an independent verification activity performed separately from, and in addition
to, the verification performed as part of each Domain Engineering Activity.
The Domain Verification Activity is motivated by the same concern that
motivates Independent Verification and Validation ( IV&V) in a conventional
software development process; namely, that engineers involved in developing a
work product cannot objectively judge the quality of that work product.
Independent validation of the domain engineering product, from the perspective
of client projects, is conducted in the Domain Validation step of the Project
Support Activity.
Domain Verification establishes the correctness, consistency, and completeness
of domain engineering work products. These terms have a precise meaning in the
context of this activity. The concept of correctness is that of relative
correctness. Similarly, the concept of completeness is that of relative
completeness. A work product is said to be correct (complete) with respect to
some criteria or to a more abstract representation of the entity the work
product describes. For example, the Product Implementation for a work product
family
can be said to be correct (complete) with respect to its
Product Requirements. Consistency, on the other hand, is a term that applies to
a collection of related work products (at the same level of abstraction) that
form a whole. Two products are consistent when they exhibit the intended
interrelationships. For example, the Product Architecture, Component Design,
and Generation Design work products for a work product family
are strongly interrelated, and, therefore, mutual consistency is an important
property for these work products.
The objective of Domain Verification is to independently evaluate the quality
of domain engineering work products.
Domain Verification requires the following information:
-
Domain Definition
-
Domain Specification
-
Domain Implementation
-
Domain Plan: Practices and Procedures
The Domain Verification Activity requires domain and software knowledge and
experience in:
-
Appropriate software verification techniques
-
How to systematically plan and perform software verification
There are no Synthesis work products produced during Domain Verification.

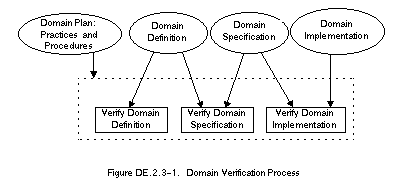

The Domain Verification Activity consists of three steps shown in
Figure DE.2.3-1 Domain Verification Process.
Step: Verify Domain Definition
-
- Action:
-
Verify the correctness, consistency, and completeness of the Domain Definition.
- Input:
-
-
Domain Definition
-
Domain Plan: Practices and Procedures
- Result:
-
None
- Heuristics:
-
-
Verify that the parts of the Domain Definition are correct and complete with
respect to the guidance provided in their respective activity descriptions.
-
Verify that the parts of the Domain Definition are correct with respect to any
specific quality attributes required of them in the Practices and Procedures
portion of the Domain Plan.
-
Verify that the Domain Synopsis, Domain Glossary, and Domain Assumptions are
mutually consistent.
-
Use the verification criteria, established for the Domain Definition in its
activity description, as guidance in verifying the Domain Definition.
-
Use static analysis techniques (e.g., formal inspections, reviews, analysis
tools) to verify the Domain Definition. These techniques are appropriate
because the Domain Definition is typically represented in document form.
Step: Verify Domain Specification
-
- Action:
-
Verify the correctness, consistency, and completeness of each work product
family in the Domain Specification.
- Input:
-
-
Domain Definition
-
Domain Specification
-
Domain Plan: Practices and Procedures
- Result:
-
None
- Heuristics:
-
-
Perform this step for each work product family in the Domain Specification.
-
Verify that the parts of the Domain Specification are correct and complete with
respect to the guidance provided in their respective activity descriptions.
-
Verify that the parts of the Domain Specification are correct with respect to
any specific quality attributes required of them in the Practices and
Procedures portion of the Domain Plan.
-
Verify that the
Product
Requirements
and Product Design for a work product family
are consistent with its
Decision Model. This means that these work products only reference decisions in
the Decision Model and, conversely, all applicable decisions in the Decision
Model are reflected in the work products.
-
Verify that the Product Architecture, Component Design, and Generation Design
for a work product family
are mutually consistent.
-
Verify that the Product Design for a work product family
is correct and complete with respect to its
Product Requirements.
-
Verify that the Process Requirements is correct and complete with respect to
the assumptions about the Application Engineering process in the Domain
Definition. The Application Engineering process is normally not explicitly
described in the Domain Definition, but the Domain Definition will typically
constrain what is an acceptable Application Engineering process.
-
Verify that the Product Requirements and Product Design are correct and
complete with respect to the representation of the Product Family in the Domain
Synopsis and Domain Assumptions parts of the Domain Definition.
-
Use the verification criteria, established for the Domain Specification work
products in their respective activity descriptions, as guidance in verifying
the Domain Specification.
-
Use static analysis techniques (e.g., formal inspections, reviews, analysis
tools) to verify the Domain
Specification for a work product family.
These techniques are appropriate because the Domain Specification is typically
represented in document form. If parts of the Domain Specification are
represented in an executable form, the use of dynamic analysis techniques may
be appropriate.
Step: Verify Domain Implementation
-
- Action:
-
Verify the correctness, consistency, and completeness of each work product
family in
the Domain Implementation.
- Input:
-
-
Domain Specification
-
Domain Implementation
-
Domain Plan: Practices and Procedures
- Result:
-
None
- Heuristics:
-
-
Perform this step for each work product family in the Domain Implementation.
-
Establish the criteria that you expect the Domain Implementation to meet before
you try to verify it. Identify analysis that you can perform
to convince yourself
that the Domain Implementation is correct with respect to the Domain
Specification. Your plan should minimally establish verification objectives and
describe a strategy for meeting those objectives.
-
Verify that the parts of the Domain Implementation are correct and complete
with respect to the guidance provided in their respective activity
descriptions.
-
Verify that the parts of the Domain Implementation are correct with respect to
any specific quality attributes required of them in the Practices and
Procedures portion of the Domain Plan.
-
Verify that the Process Support and Product Implementation for a work product
family
are mutually consistent.
-
Verify that the Component Implementation and the Generation Implementation for
a work product family
are mutually consistent.
-
Verify that the Process Support for a work product family
is correct with respect to its
Process Requirements.
-
Verify that documents and automation that make up the Process Support are
engineered in a way that adequately addresses human factors concerns. For
example, you should establish that the Application Engineering Environment
portion of Process Support has the qualities of usability, adequate
performance, and tolerance of user errors.
-
Verify that the Product Implementation for a work product family
is correct and complete with respect to its
Domain Specification. The requirements for the Product Implementation are
represented in the Product Requirements portion of the Domain Specification.
The internal organization for the Product Implementation is represented in the
Product Design portion of the Domain Specification.
-
Verify that a work product
produced using the Process Support has
expected properties. Do this by resolving the decisions of the work
product family's Decision Model, producing the work products corresponding to
that model, and then verifying that the work
product has
the expected properties. Specifically:
-
Verify that the work
product
produced by the Process Support is
correct and complete with respect to the Product Requirements and Product
Design of its corresponding work
product family (appropriately instantiated with the decisions from the Decision
Model).
-
Verify the usability and correctness of the Delivery Support. This should be
established through direct inspection and by using the delivery support to
install/deliver the Application Product.
A good strategy for selecting work products to produce is to try to build all
or part of Legacy Products that are within the intended scope of the domain.
-
Use the verification criteria, established for the Domain Implementation work
products in their respective activity descriptions, as guidance in verifying
the Domain Implementation.
-
Use conventional verification techniques that are appropriate to the task of
verifying the Domain
Implementation for a work product family.
Static analysis techniques (e.g., inspections) are appropriate for static
representations of the Domain Implementation (e.g., Application Engineering
User's Guide). Dynamic analysis techniques (e.g., testing) are appropriate for
dynamic aspects of the Domain Implementation (e.g., automated support for
specification, analysis, and product generation).
-
- Risk:
- The criteria used to evaluate the domain engineering work products will be
unduly influenced by the final content and form of the work products
themselves.
- Implication:
-
The effectiveness of the verification effort will be reduced.
- Mitigation:
-
Define acceptable levels of correctness, completeness, and consistency for each
domain engineering work product prior to examining it.
-
- Contingency:
-
The Domain Definition is incorrect, inconsistent, or incomplete.
- Source:
-
Domain Definition Activity
- Response:
-
Precisely communicate how the Domain Definition is incorrect, inconsistent, or
incomplete.
- Contingency:
-
The Domain Specification for a work product family
is incorrect, inconsistent, or incomplete.
- Source:
-
Domain Specification Activity
- Response:
-
Precisely communicate how the Domain Specification is incorrect, inconsistent,
or incomplete.
- Contingency:
-
The Domain Implementation for a work product family
is incorrect, inconsistent, incomplete.
- Source:
-
Domain Implementation Activity
- Response:
-
Precisely communicate how the Domain Implementation is incorrect, inconsistent,
or incomplete.
None
